Hello Docker⚓︎

This tutorial builds on Hello World Wide Web to create a container image and run it using docker.

Install docker⚓︎

Follow instructions in the Docker Documentation

Create Dockerfile⚓︎

The Dockerfile contains instructions to build a container image. The Dockerfile reference documentation covers many more instructions, but we'll only use a few today. Create a new file Dockerfile in the same directory as index.js and paste the following code.

Dockerfile
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
# Use a base image with node.js (1)
FROM node:25.9.0-alpine3.22

# Default working directory is / (root), use a subdirectory for our app
WORKDIR /app

# Copy the code file index.js into the image (2)
COPY index.js .

# This port number should match index.js (3)
EXPOSE 3000

# Tell docker what command to use to start the app (4)
CMD ["node", "index.js"]

  1. We could use only FROM node which will use the latest version of node, but this has some problems:
    1. If we try this tutorial a year later, we'd get a very different version of node which might act differently. Specifying an exact version ensures that it will behave the same as when the tutorial was written.
    2. The node image on docker hub has multiple variants. We're using the alpine variant since it's much smaller than the default, so that we don't have to wait as long to build the image.
  2. index.js is from the previous tutorial Hello World Wide Web - Add Source
  3. Specifically, the line const port = 3000;
  4. Just like we did in Hello World Wide Web - Run the App

Build Container Image⚓︎

Run the command below in order to build a container image:

docker build --tag hello-node:1.0.0 .

To see the image we created, run:

docker images hello-node

The image shows up in the output:

IMAGE               ID             DISK USAGE   CONTENT SIZE   EXTRA
hello-node:1.0.0    69436a1c833d        162MB             0B

Run the Container⚓︎

Use docker to run a container with the image we built above:

docker run --rm hello-node:1.0.0

Documentation for docker run --rm

Automatically remove the container and its associated anonymous volumes when it exits

The output in the terminal shows the app is running:

Server running at http://127.0.0.1:3000/

But, we can't connect using our browser:

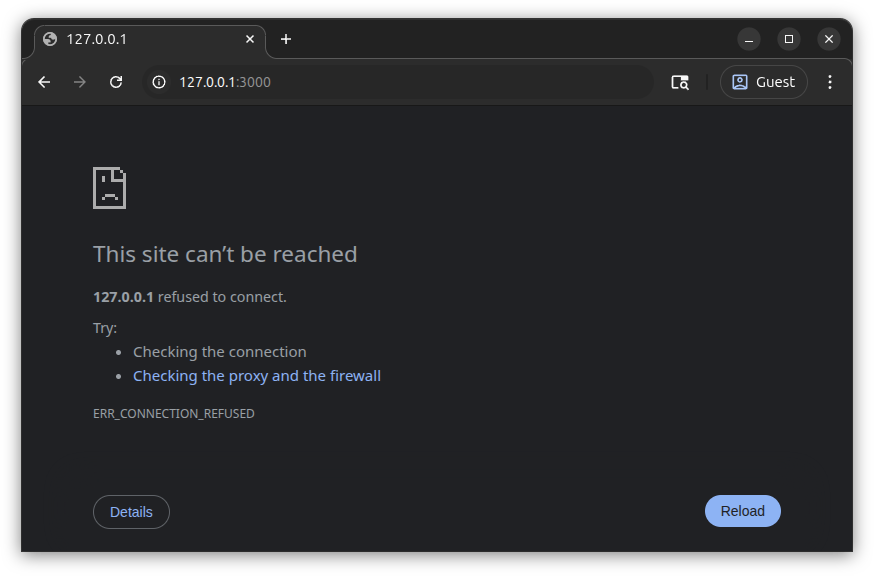

Browser shows site can't be reached

We're going to make some changes to fix this, but first we need to stop the running app.

Stopping the Container⚓︎

Pressing Ctrl+C 3 times will return to the shell prompt and print:

got 3 SIGTERM/SIGINTs, forcefully exiting

But did it really exit? Let's use a docker command to view running containers:

docker ps --filter ancestor=hello-node:1.0.0

docker ps --filter

This option tells docker to only display containers which meet some criteria. In this case, we're telling docker to only show containers which use the hello-node image we built above. This isn't really required, but avoids displaying any other running containers.

Even though it printed forcefully exiting, we see our container with the hello-node is still running:

Output
CONTAINER ID   IMAGE              COMMAND                  CREATED              STATUS              PORTS      NAMES
a8ad83388f40   hello-node:1.0.0   "docker-entrypoint.s…"   About a minute ago   Up About a minute   3000/tcp   nervous_khayyam

To stop the container, run the command below, replacing NAME_OR_ID with either the CONTAINER ID or NAMES of the container.

docker kill NAME_OR_ID

We don't want to kill the container manually every time we run it, so let's make a small change to how we run it:

docker run --rm --init hello-node:1.0.0

Documentation for docker run --init

Run an init inside the container that forwards signals and reaps processes

If we test the new docker run command above with --init, a single Ctrl+C now exits. Afterwards, docker ps doesn't show any running container with the hello-node image.

Once More, with Forwarding⚓︎

Now that our app is running inside a container, we can't access it directly anymore. Fortunately, docker is able to "publish" container ports by forwarding from a port on the host to a port in the container. To make sure we're communicating with our app running in a container instead of the previous tutorial version, we'll forward a different host port (3001) to container port 3000.

docker run --rm --init --publish 3001:3000 hello-node:1.0.0

If we open http://127.0.0.1:3001/ in the browser, we still don't see "Hello World", but we do get a different error message:

The connection was reset ERR_CONNECTION_RESET

This means there was something listening on the port, but the connection was closed when the browser tried to write to it. Because we ran docker publish, something is listening now, but the connection is closed because it can't communicate with the container.

To understand why, let's take a deeper look at the container networking.

Container Networking⚓︎

Let's run a command in our container to learn more about its network setup. First, use docker ps to get the container's NAMES:

docker ps --filter ancestor=hello-node:1.0.0

Now, use docker exec to run a command inside the container, replacing NAME_OR_ID with either the CONTAINER ID or NAMES of the container.

docker exec NAME_OR_ID ip addr list

The command outputs the container's network interfaces:

Output
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: eth0@if123: <BROADCAST,MULTICAST,UP,LOWER_UP,M-DOWN> mtu 1500 qdisc noqueue state UP
    link/ether 2a:33:63:f3:f1:72 brd ff:ff:ff:ff:ff:ff
    inet 172.17.0.5/16 brd 172.17.255.255 scope global eth0
       valid_lft forever preferred_lft forever

Let's also take at the network interfaces on our host machine:

ip addr list
Output
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host noprefixroute
       valid_lft forever preferred_lft forever
...
5: docker0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default
    link/ether 7e:17:4d:b0:a7:db brd ff:ff:ff:ff:ff:ff
    inet 172.17.0.1/16 brd 172.17.255.255 scope global docker0
       valid_lft forever preferred_lft forever
    inet6 fe80::7c17:4dff:feb0:a7db/64 scope link
       valid_lft forever preferred_lft forever

There are likely other network interfaces in the output, but we can see:

  • lo - the localhost interface for the host. While this has the same name as the lo interface in the container, they are totally isolated from each other.
  • docker0 - a virtual network interface managed by docker. Each container will have a different IP address on this network.

In the last tutorial when this worked, all we had was:

flowchart LR
subgraph Host
    direction LR
    browser[Browser] --> host_lo_intf["Interface <b>lo</b><br>127.0.0.1/8"]
    host_lo_intf --> host_hello_node["node/index.js<br>listening 127.0.0.1:3000"]
end
classDef interface fill:#00ff911a,stroke:#00ff91
class host_lo_intf interface

Here's the situation that we're in now with the container:

flowchart LR
subgraph Host
    direction TB
    browser[Browser] --> host_lo_intf["Interface <b>lo</b><br>127.0.0.1/8"]
    host_lo_intf --> host_docker_publish["docker publish<br>listening 127.0.0.1:3001"]
    host_docker_publish --> host_docker_intf["Interface <b>docker0</b><br>172.17.0.1/16"]
end
subgraph Container
    direction BT
    host_docker_intf --> container_docker_intf["Interface <b>eth0@if123</b><br>172.17.0.5/16"]
    container_docker_intf ~~~ container_lo_intf["Interface <b>lo</b><br>127.0.0.1/8"]
    container_lo_intf --> container_hello_node["node/index.js<br>listening 127.0.0.1:3000"]
end
classDef interface fill:#00ff911a,stroke:#00ff91
class host_lo_intf,host_docker_intf,container_docker_intf,container_lo_intf interface

Note that there is no way for the network traffic to move between the container network interfaces eth0@if123 and lo. This means the traffic never reaches our code in index.js. To fix this, we need to have our code listen on the container eth0@if123 interface, which has an address such as 172.17.0.5.

Listen Everywhere⚓︎

How do we make this code change? We can't hardcode the container's network interface address in index.js because we won't know it until after the container starts. Fortunately, there's a standard way to listen on all interfaces, the special address 0.0.0.0.

flowchart LR
subgraph Host
    direction TB
    browser[Browser] --> host_lo_intf["Interface <b>lo</b><br>127.0.0.1/8"]
    host_lo_intf --> host_docker_publish["docker publish<br>listening 127.0.0.1:3001"]
    host_docker_publish --> host_docker_intf["Interface <b>docker0</b><br>172.17.0.1/16"]
end
subgraph Container
    direction BT
    host_docker_intf --> container_docker_intf["Interface <b>eth0@if123</b><br>172.17.0.5/16"]
    container_lo_intf["Interface <b>lo</b><br>127.0.0.1/8"]
    container_docker_intf --> container_hello_node["node/index.js<br>listening 0.0.0.0:3000"]
end
classDef interface fill:#00ff911a,stroke:#00ff91
class host_lo_intf,host_docker_intf,container_docker_intf,container_lo_intf interface

Let's update index.js to use this address.

index.js
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
const { createServer } = require('node:http');

const hostname = '0.0.0.0';
const port = 3000;

const server = createServer((req, res) => {
  res.statusCode = 200;
  res.setHeader('Content-Type', 'text/plain');
  res.end('Hello World');
});

server.listen(port, hostname, () => {
  console.log(`Server running at http://${hostname}:${port}/`);
});

Rebuild the image and start the container again. We'll use version 1.0.1 now since we've fixed a bug in the image.

docker build --tag hello-node:1.0.1 . && docker run --rm --init --publish 3001:3000 hello-node:1.0.1

On startup, we see the new address 0.0.0.0.

Output
Server running at http://0.0.0.0:3000/

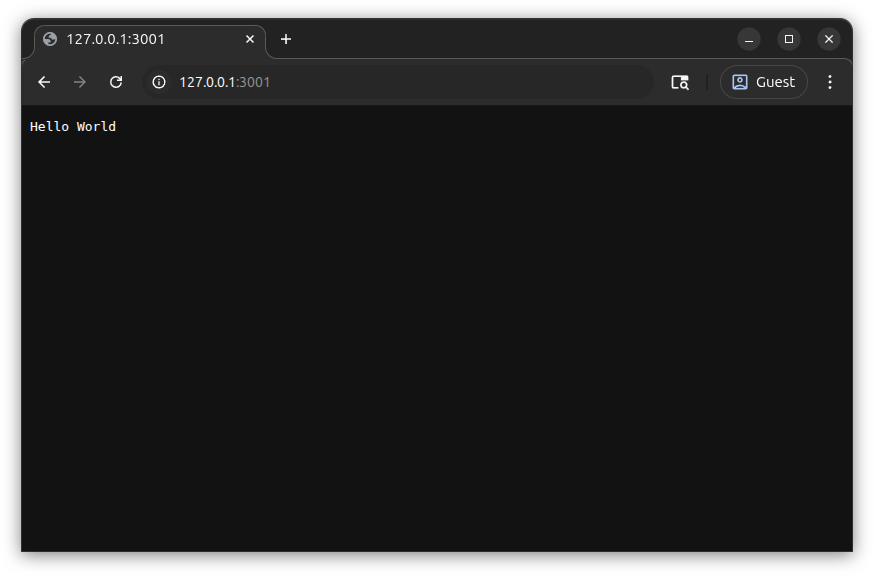

Open http://127.0.0.1:3001/ in the browser again, and we can finally see our Hello World greeting!

Hello World

Review⚓︎

That was a lot to do and think about just to get the same functionality as in the previous tutorial. Why would anyone want to deal with all of this extra complexity? There are many systems that can start and manage containers. Any of these could run our container image without needing to know what's inside the container. Each container could run different code implemented using different programming languages.
